Charging equipment.
For every scale.

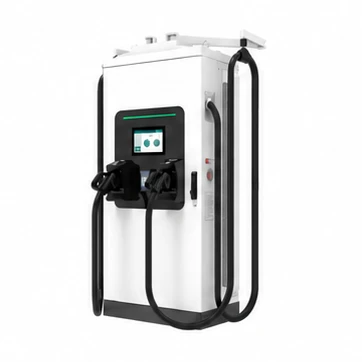

DC-101 / Integrated DC

High-protection integrated DC charger

60 / 80 kW

CCS2 · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code / Autocharge

Charging mode

Simultaneous charging

Cooling

Fan cooling

Display

10-inch colour touchscreen

Energy meter

DC meter

Cable management

Optional

Output current

CCS2: 300 A rated; GB/T: 250 A rated

Peak efficiency

>96%

Operating temperature

−30 to +50°C

Connector combinations

CCS2+CCS2 / CCS2+GB/T / GB/T+GB/T

EV communication

CCS2: PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20); GB/T: CAN (GB/T 27930)

Backend

Ethernet / 4G; OCPP 1.6J / OCPP 2.0

Certification claim

CE

Modules

Fully potted; IEC 61851-23:2023 claim

Constant-power range (feature text)

300–1000 V

Dimensions (W×D×H)

870 × 460 × 1600 mm

Weight

≤270 kg

DC-102 / Integrated DC

High-protection integrated DC charger

120 / 160 kW

CCS2 · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code / Autocharge

Charging mode

Simultaneous charging

Cooling

Fan cooling

Display

10-inch colour touchscreen

Energy meter

DC meter

Cable management

Optional

Output current

CCS2: 300 A rated; GB/T: 250 A rated

Peak efficiency

>96%

Operating temperature

−30 to +50°C

Connector combinations

CCS2+CCS2 / CCS2+GB/T / GB/T+GB/T

EV communication

CCS2: PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20); GB/T: CAN (GB/T 27930)

Backend

Ethernet / 4G; OCPP 1.6J / OCPP 2.0

Certification claim

CE

Modules

Fully potted; IEC 61851-23:2023 claim

Constant-power range (feature text)

300–1000 V

Dimensions (W×D×H)

870 × 460 × 1600 mm

Weight

≤270 kg

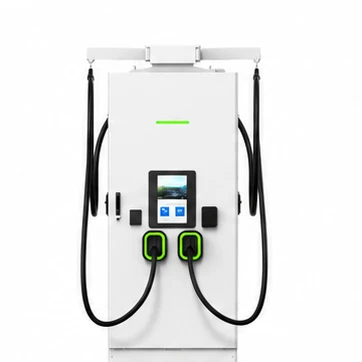

DC-103 / Integrated DC

High-protection integrated DC charger

180 / 240 kW

CCS2 · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code / Autocharge

Charging mode

Simultaneous charging

Cooling

Fan cooling

Display

10-inch colour touchscreen

Energy meter

DC meter

Cable management

Optional

Output current

CCS2: 300 A rated; GB/T: 250 A rated

Peak efficiency

>96%

Operating temperature

−30 to +50°C

Connector combinations

CCS2+CCS2 / CCS2+GB/T / GB/T+GB/T

EV communication

CCS2: PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20); GB/T: CAN (GB/T 27930)

Backend

Ethernet / 4G; OCPP 1.6J / OCPP 2.0

Certification claim

CE

Modules

Fully potted; IEC 61851-23:2023 claim

Constant-power range (feature text)

300–1000 V

Dimensions (W×D×H)

810 × 500 × 1750 mm

Weight

≤340 kg

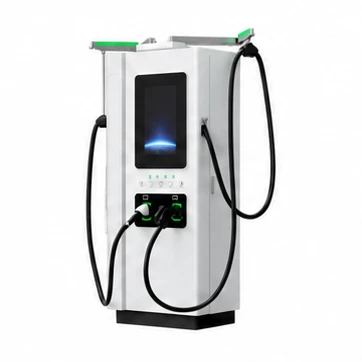

DC-104 / Integrated DC

Slim integrated DC charger

160 / 200 / 240 kW

CCS2 · CCS1 · CHAdeMO · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

50/60 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code (optional)

Charging mode

Simultaneous charging

Cooling

Fan cooling

Dimensions (W×D×H)

850 × 550 × 2000 mm (excluding cable management)

Display

24-inch advertising screen with multilingual interaction (feature text)

Impact rating

IK10; display IK08

Meter

MID

Peak efficiency

>95%

Operating temperature

−30 to +70°C; derating from 51°C

Noise

≤65 dB average at 1 m, 25°C (laboratory)

EV communication

DIN 70121 / ISO 15118-2 / ISO 15118-20; Autocharge; Plug & Charge

Backend

Dual SIM GSM/3G/4G/Ethernet; OCPP 1.6J / 2.0.1

Connector options

CCS2; CCS1 / CHAdeMO / GB/T by special OEM request

Certification claims

CE / CB / UKCA / TR25

Enclosure

304 stainless steel; fully potted modules

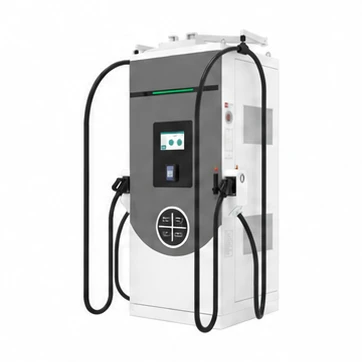

DC-105 / Integrated DC

Public integrated DC charger

180 / 240 / 320 / 400 kW

CCS · CHAdeMO · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code (optional)

Charging mode

Simultaneous charging

Cooling

Fan cooling

Connectors

CCS / CHAdeMO / GB/T (customised)

Display

10.1-inch colour touchscreen

Meter

MID

Peak efficiency

>95%

Operating temperature

−30 to +50°C

EV communication

PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20)

Backend

Ethernet / 4G; OCPP 1.6J

Certification claims

CE / CB / UKCA / TR25 / RoHS / ADQCC / RCM

Software

Remote fault diagnosis and controller OTA updates

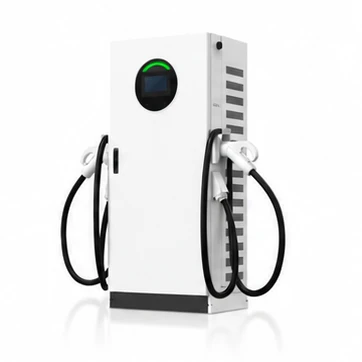

DC-106 / Integrated DC

Compact public DC charger

50 / 60 / 80 / 120 / 150 / 160 kW

CCS · CHAdeMO · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code (optional)

Charging mode

Simultaneous charging

Cooling

Fan cooling

Connectors

CCS / CHAdeMO / GB/T (customised)

Display

10.1-inch colour touchscreen

Meter

MID

Peak efficiency

>95%

Operating temperature

−30 to +50°C

EV communication

PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20)

Backend

Ethernet / 4G; OCPP 1.6J

Certification claims

CE / CB / UKCA / TR25 / RoHS / ADQCC / RCM

Software

Remote fault diagnosis and controller OTA updates

CCS2 output current

200 A maximum

CHAdeMO output current

125 A maximum

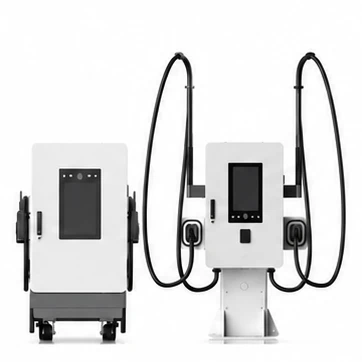

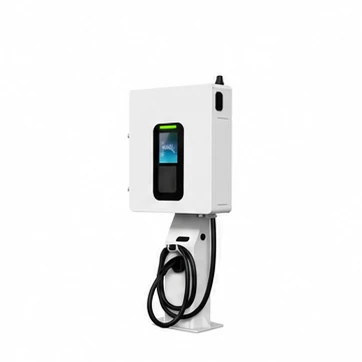

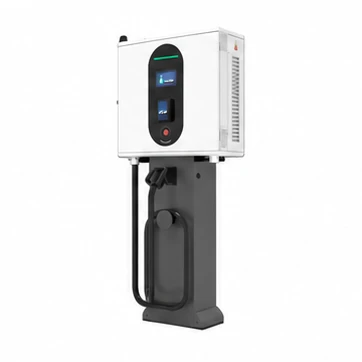

DC-107 / Integrated DC

Wall or pedestal DC charger

30 / 40 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground / wall

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code (optional)

Charging mode

Simultaneous charging

Cooling

Fan cooling

Dimensions as printed (W×D×H)

Charger: 750 × 300 × 1800 mm; pedestal: 452 × 242 × 1050 mm

Weight

Wall-mounted 100 kg; floor-mounted 130 kg

Display

7-inch colour screen

Meter

DC metering; MID AC metering optional

Peak efficiency

>95%

Operating temperature

−30 to +50°C

Noise

≤65 dB

Backend

Ethernet / 4G; OCPP 1.6J

EV communication

PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20)

Certification claims

CE / CB / UKCA / TR25 / ANATEL (router)

Printed charger dimensions appear inconsistent with the image; confirm before site design.

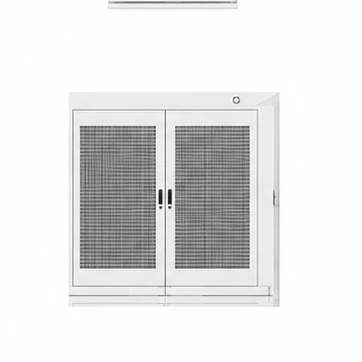

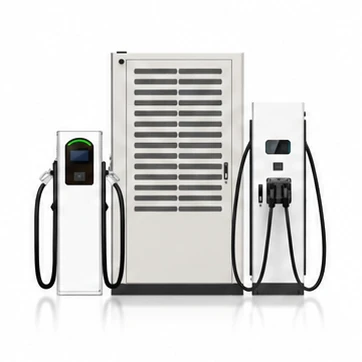

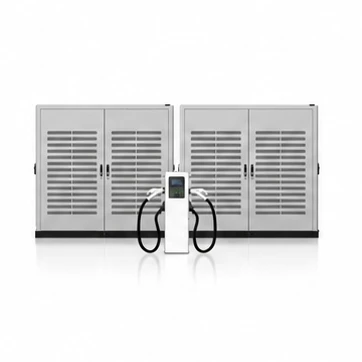

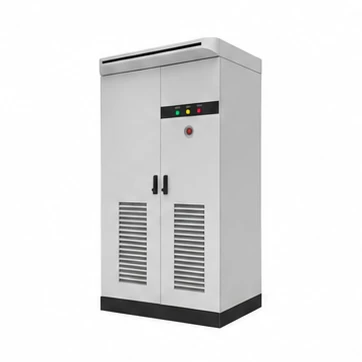

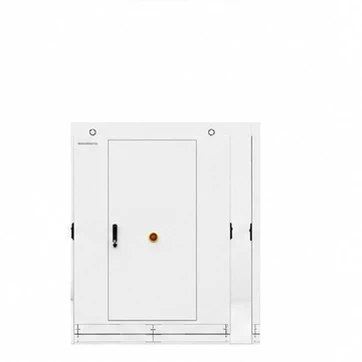

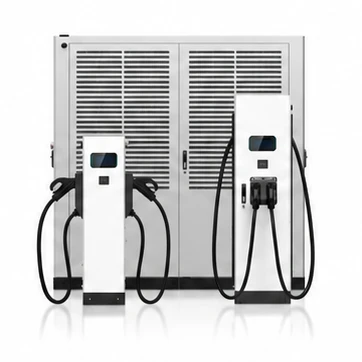

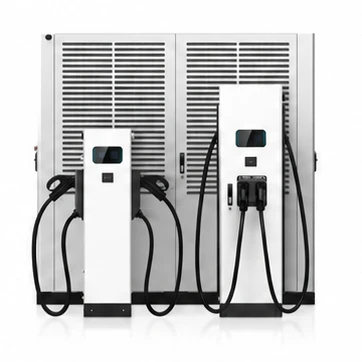

DS-101 / Distributed systems

Modular distributed power cabinet

360 / 480 / 720 kW

CCS1 · CCS2 · CHAdeMO · GB/T · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%, 3P+N+PE

Input frequency

45–65 Hz

Power factor

≥0.99

Input harmonic distortion

≤5%

Output voltage

200–1000 VDC

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Protection

IP55

Installation

Ground-mounted; indoor/outdoor

Cable length

5 m (customised options where stated)

Payment

RFID / credit card / QR code (optional)

Charging mode

Simultaneous charging

Cooling

Fan cooling

Output voltage error

≤±0.5%

Output current error

≤±1%

Voltage stabilisation accuracy

≤±0.5%

Current stabilisation accuracy

≤±1%

Peak-to-peak ripple

≤±1%

Constant-power range

300–1000 VDC

Peak efficiency

>95%

Operating temperature

−30 to +50°C

Storage temperature

−40 to +75°C

Modules

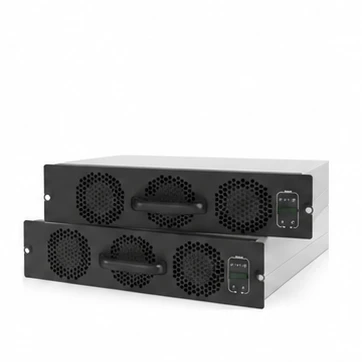

40 kW; EMC Class B

Power allocation

Star-ring distribution; single-module multi-path allocation

Certification claims

CE / CB / UKCA / RoHS

Access-terminal counts follow the printed table; terminal/channel terminology requires configuration confirmation. Cabinet power is shared across connected terminals.

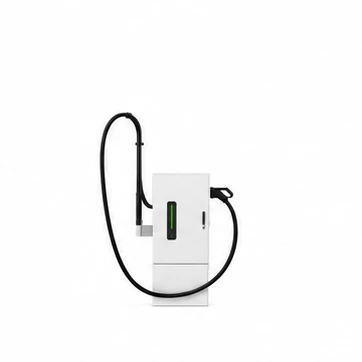

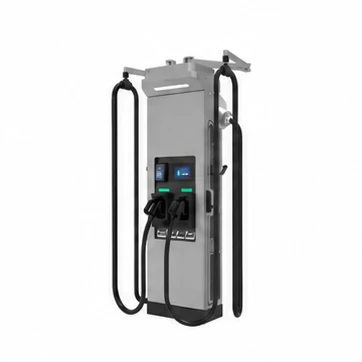

DP-101 / Dispensers

Air-cooled charging dispenser

300 kW

CCS2 · CCS1 · CHAdeMO · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Output voltage error

≤±0.5%

Output current error

≤±1%

Voltage stabilisation accuracy

≤±0.5%

Current stabilisation accuracy

≤±1%

Peak-to-peak ripple

≤±1%

Cable management

Supported

Display

7-inch colour touchscreen

Backend

Ethernet / 4G; OCPP 1.6J / OCPP 2.0 (upgradeable)

EV communication

PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20)

Authentication

IC card / credit card / QR code (optional)

Certification claims

CE / CB / UKCA / RoHS

Output voltage

200–1000 VDC

Constant-power range

300–1000 VDC

Meter

DC metering (CE)

Cable length

5 m (customised)

Peak efficiency

>95% (as printed for terminal)

Operating temperature

−30 to +50°C

Storage

−40 to +75°C

Protection

IP55; indoor/outdoor

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Dimensions (W×D×H)

500 × 250 × 1950 mm

Weight

155 kg dual / 130 kg single

Cooling

Fan cooling

Requires compatible power cabinet; 300 kW is the printed terminal rating.

DP-102 / Dispensers

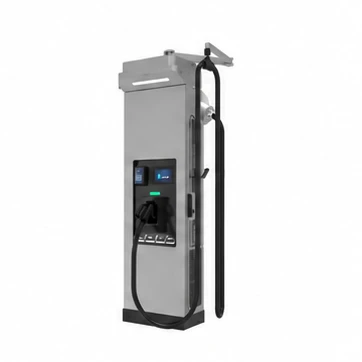

Liquid-cooled charging dispenser

500 / 600 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Output voltage error

≤±0.5%

Output current error

≤±1%

Voltage stabilisation accuracy

≤±0.5%

Current stabilisation accuracy

≤±1%

Peak-to-peak ripple

≤±1%

Cable management

Supported

Display

7-inch colour touchscreen

Backend

Ethernet / 4G; OCPP 1.6J / OCPP 2.0 (upgradeable)

EV communication

PLC (DIN 70121:2014-12 / ISO 15118-2 / ISO 15118-20)

Authentication

IC card / credit card / QR code (optional)

Certification claims

CE / CB / UKCA / RoHS

Output voltage

200–1000 VDC

Constant-power range

300–1000 VDC

Meter

DC metering (CE)

Cable length

5 m (customised)

Peak efficiency

>95% (as printed for terminal)

Operating temperature

−30 to +50°C

Storage

−40 to +75°C

Protection

IP55; indoor/outdoor

Humidity

5–95% RH, non-condensing

Altitude

≤2000 m without derating; above 2000 m, operating temperature limit decreases 1°C per 100 m rise

Connectors

1 × CCS2

Rated / maximum terminal power

500 kW / 600 kW maximum

Current per connector

500 A rated / 600 A maximum

Dimensions (W×D×H)

500 × 250 × 2000 mm

Weight

140 kg

Cooling

Liquid cooling

Requires compatible power cabinet. Maximum-current duration is not stated.

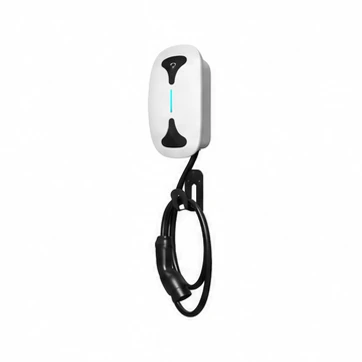

AC-101 / AC charging

Smart AC wallbox

7 / 11 kW

Type 2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Dimensions (W×D×H)

344 × 192 × 100 mm (cable); 344 × 201 × 135 mm (socket)

Connector

Type 2 cable; Type 2 socket optional

Cable length

4 m; 7 m optional

RFID

Mifare ISO/IEC 14443 A

Authentication

Plug & Play / RFID / app

Installation

Wall; floor mounting optional

Frequency

50/60 Hz

Wi-Fi

2.4 GHz

4G

Optional

Bluetooth

Yes

Ethernet

Yes

eSIM

Optional

Protocol

OCPP 1.6 JSON (online use)

Protection

IP65 / IK10

Operating temperature

−30 to +50°C

Humidity

5–95%

Altitude

≤2000 m

Certification claim

CE

Standards

IEC 61851-1:2019; IEC 62955:2018; IEC 61851-21-2:2018; IEC 62196

Features

Dynamic load balancing; photovoltaic integration; remote app control

The brochure heading names DC connectors, but its specification table identifies Type 2 AC; this listing follows the table.

DC-201 / Integrated DC

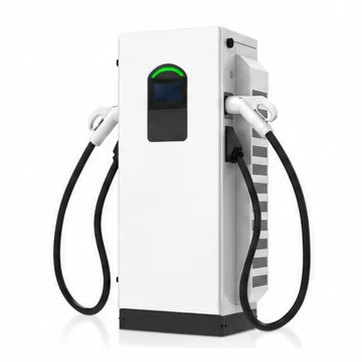

Compact destination DC charger

40 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50 Hz (50/60 Hz where explicitly stated)

Power factor

0.99

THDi

≤5%

Output voltage

200–1000 VDC

Peak efficiency

96%

Operating temperature

−25 to +65°C; derating above 30°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

8-inch touchscreen and LED status light

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Input current / power

63 A / 43 kW

Grounding

TN-S / TN-C-S

Connector

1 × CCS2

Output current

125 A maximum

Derating

100% to 30°C; linear power limit at 30–65°C; shutdown at ≥65°C

Storage

−30 to +70°C

Dimensions

W550 × H700 × D200 mm; mobile W600 × H1035 × D560 mm

Weight

≤70 kg

Cooling

Air

EMC

Class A (industrial)

Installation

Wall-mounted / standalone / mobile

Standby

<20 W (feature text)

Certification claims

CE / TÜV

Table efficiency is 96%; feature text says 97%. Exact configuration requires confirmation.

DC-202 / Integrated DC

Mobile or pedestal DC charger

60 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+PE / 3P+N+PE; mobile CEE plug

Frequency

Not specified on this product page

Power factor

Not specified on this product page

THDi

Not specified on this product page

Output voltage

200–1000 VDC

Peak efficiency

97%

Operating temperature

−30 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

4G / Ethernet

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

RFID / app; credit card optional

Altitude

≤2000 m

Protection functions

Input/output overvoltage, short circuit, overtemperature, current surge

Input current

95 A

Connectors

Up to 2 × CCS2

Output current

200 A; 150 A optional

Storage

−40 to +70°C

Dimensions (W×D×H)

620 × 300 × 1000 mm

Weight

177 kg pedestal; 160 kg mobile

Installation

Pedestal / mobile

Noise

<60 dB

Certification claim

CE-RED

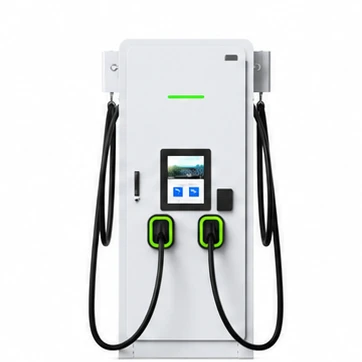

DC-203 / Integrated DC

Destination integrated DC charger

60 / 80 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50 Hz (50/60 Hz where explicitly stated)

Power factor

0.99

THDi

≤5%

Output voltage

200–1000 VDC

Peak efficiency

96%

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

QR code / RFID / NFC; credit card optional

Altitude

Not specified on this product page

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Output current

200 A maximum

Dimensions (W×D×H)

850 × 550 × 2030 mm

Weight

≤360 kg

Standby

<0.1% maximum power

EMC

Class A (industrial)

Cable management

Optional

Certification claims

CE / TÜV / RCM

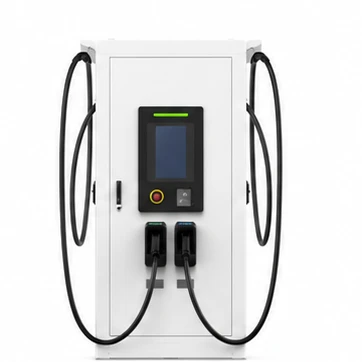

DC-204 / Integrated DC

Dual-output integrated DC charger

80 / 120 / 160 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50 Hz (50/60 Hz where explicitly stated)

Power factor

0.99

THDi

≤5%

Output voltage

200–1000 VDC

Peak efficiency

96%

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

QR code / RFID

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Output current

Up to 200 A

Connector configuration

Single or dual; demand-based power distribution

Cooling

Forced air

Dimensions (W×D×H)

1000 × 700 × 2000 mm

Standby

61 W (feature text)

Certification claims

CE / TÜV / RCM / Eichrecht

DC-205 / Integrated DC

High-output integrated DC charger

120 / 140 / 160 / 180 / 200 / 240 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50 Hz (50/60 Hz where explicitly stated)

Power factor

0.99

THDi

≤5%

Output voltage

200–1000 VDC

Peak efficiency

96%

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, overcurrent, overtemperature, short circuit, reverse charging, leakage, surge, emergency stop

Grounding

TT / TN-S

Connectors

2 × CCS2

Current

500 A boost; feature text describes 350 A cable

Standby

<100 W table; 64 W feature text

Storage

−30 to +70°C

Dimensions (W×D×H)

850 × 750 × 2000 mm

Weight

≤540 kg

Languages

English / French / German / Turkish and others

EV protocol

ISO 15118 / DIN 70121

Cable management

Yes

Custom options

Tilt / flood / fire protection; heater

Standards

IEC 61851 / IEC 62196 / IEC 61000

Certification claims

CE / TÜV

Boost duration is not stated.

DC-206 / Integrated DC

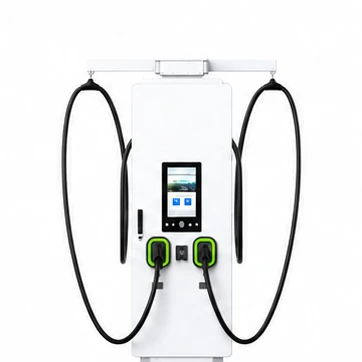

Modular high-power DC charger

400 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+PE / 3P+N+PE

Frequency

Not specified on this product page

Power factor

Not specified on this product page

THDi

Not specified on this product page

Output voltage

200–1000 VDC

Peak efficiency

97%

Operating temperature

−30 to +65°C (full power stated)

Humidity

5–95% RH, non-condensing

Protection

IP54 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

4G / Ethernet

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

RFID / app; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Input current

630 A

Connectors

Up to 2 × CCS2

Output current

500 A air cooling / 600 A liquid cooling

Storage

−40 to +70°C

Dimensions (W×D×H)

620 × 800 × 2000 mm

Weight

<600 kg

Installation

Floor-mounted

Noise

<65 dB

Certification claim

CE-RED

Power options (feature text)

120–400 kW

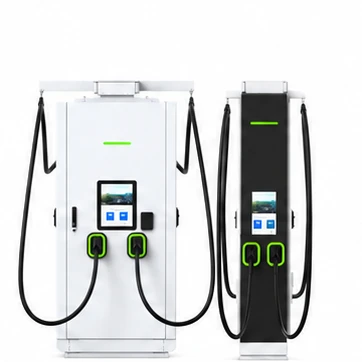

DC-207 / Integrated DC

Expandable high-power DC charger

640 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE / 3P+PE

Frequency

50/60 Hz

Power factor

0.99

THDi

<5%

Output voltage

200–1000 VDC

Peak efficiency

96.2%

Operating temperature

−30 to +50°C

Humidity

5–95% RH, non-condensing

Protection

IP54 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English; other languages customisable

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

Credit card / QR code / RFID / Autocharge

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Input current / power

1160 A / 685 kVA

Grounding

TN-S / TT / TN-C-S

Connectors

2; up to 4 with extra dispenser

Constant-power output voltage

300–1000 VDC

Continuous / boost current (feature text)

Liquid: 500 A / 700 A boost; natural air: 350 A / 500 A boost

Aggregate current (feature text)

1400 A (2 × 700 A)

Power switching step

160 kW

Dimensions (W×D×H)

990 × 990 × 2000 mm

Weight

≤810 kg

Installation

Outdoor floor-mounted

RFID

ISO 14443 A+B part 4; ISO/IEC 15693; Mifare 1; NFC

EMC

Class A (industrial)

Accessible design

Yes

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Certification claims

CE / RED / MID compliant

640 kW is shared system power. Additional dispenser required for four connectors; boost duration not specified.

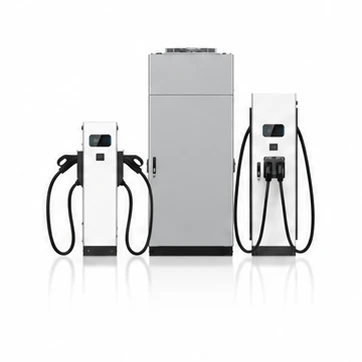

DS-201 / Distributed systems

Distributed DC power unit

360 / 480 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Rated power

360 / 480 kW; flexible output up to 480 kW

Input

400 VAC ±10%; 3P+N+PE

Frequency

50/60 Hz

Power factor

0.99

Peak efficiency

≥96%

Maximum connectors

6

Dimensions (W×D×H)

1600 × 1100 × 2000 mm

Weight

≤1000 kg

Output voltage (series text)

200–1000 VDC

Standby (feature text)

56 W

Power distribution

Full matrix switching; flexible allocation

Requires compatible dispensers. Power is shared across connectors.

DS-202 / Distributed systems

Megawatt distributed DC power unit

960 / 1280 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Rated power

960 / 1280 kW

Input

400 VAC ±10% @ 50 Hz

DC output voltage

200–1000 V

Power factor

≥0.99

THDi

≤5%

Peak efficiency

96.2%

Maximum connectors

16

Protection

IP55 / IK10

Dimensions (W×D×H)

2300 × 1100 × 2100 mm

Weight

≤2000 kg

Standby (feature text)

58 W

Power distribution

Full matrix switching; flexible allocation

Requires compatible dispensers. Power is shared across connectors.

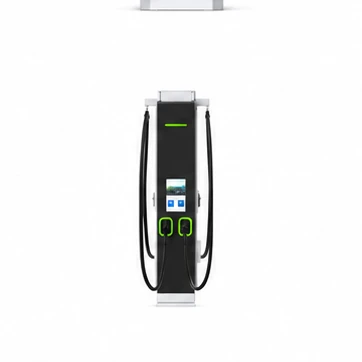

DP-201 / Dispensers

High-current CCS dispenser

Power-unit dependent

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Output voltage

200–1000 VDC

Maximum current

500 A boost (air); 700 A boost (liquid)

Dimensions (W×D×H)

450 × 800 × 2100 mm

Weight

≤250 kg

Cable length

5 m exposed

Communication

Ethernet / GSM / 4G

Payment

QR code / RFID / NFC; credit card optional

Load sharing

Flexible distribution according to requirements

Continuous current (series text)

Dual 500 A liquid-cooled connectors; up to 1000 kW per dispenser claimed

Requires a compatible power unit. Boost duration not specified; rated power not separately stated in the table.

DP-202 / Dispensers

Compact pedestal dispenser

Power-unit dependent

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Output voltage

200–1000 VDC

Maximum current

500 A boost

Dimensions (W×D×H)

500 × 200 × 800 mm

Cable length

5 m exposed

Payment

QR code / RFID / NFC

Requires compatible power unit; boost duration, continuous current and weight not specified.

DC-208 / Integrated DC

Mobile or pedestal DC charger — 480 V

60 kW

CCS1 · NACS · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

480 VAC ±10%

Input type

3P+PE

Frequency

Not specified on this product page

Power factor

Not specified on this product page

THDi

Not specified on this product page

Output voltage

200–1000 VDC

Peak efficiency

97%

Operating temperature

−30 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

NEMA 3R

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

4G / Ethernet / Wi-Fi

Language

English

Backend

OCPP 1.6J / OCPP 2.0.1

Payment

RFID / app; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Connectors

Up to 2; CCS1 / NACS

Certification claims

cTÜVus / FCC

Input current

85 A

Output current

200 A; 150 A optional

Storage

−40 to +70°C

Installation

Pedestal / mobile / wall-mounted

Dimensions (W×D×H)

2.03 × 0.98 × 3.28 ft

Weight

177 kg (370 lb as printed) pedestal; 160 kg (353 lb) mobile

Noise

<65 dB

Regional 480 V variant; Nepal suitability requires assessment. Printed 177 kg / 370 lb conversion is inconsistent.

DC-209 / Integrated DC

Integrated DC charger — 480 V

160 kW

CCS1 · NACS · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

480 VAC ±10%

Input type

3P+PE

Frequency

60 Hz

Power factor

0.99

THDi

<5%

Output voltage

200–1000 VDC

Peak efficiency

≥96%

Operating temperature

−30 to +65°C; derating at 50°C

Humidity

5–95% RH, non-condensing

Protection

NEMA 3R / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / 4G

Language

English

Backend

OCA 2.0.1 claim; detailed protocol version not separately listed

Payment

Credit card / QR code / RFID

Altitude

Not specified on this product page

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Connectors

2

Certification claims

cTÜVus / FCC / CTEP & NTEP / Energy Star / OCA 2.0.1

Output current

350 A continuous claim

Cooling

Forced air

Noise

≤80 dB within 1 m

Weight

362 kg / 798 lb

Standards

UL 2202:2022; UL 2231:2022; CSA C22.2 No.346:2022; FCC Part 15 Subpart B:2021; ICES-002:2020

Features

Accessible component height; cable management; 40 kW modules; backward-compatible to 60 kW

DC-210 / Integrated DC

Dual-output DC charger — 480 V

160 / 240 kW

CCS1 · NACS · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

480 VAC ±10%

Input type

L1+L2+L3+PE

Frequency

60 Hz

Power factor

0.99 at full load

THDi

<5%

Output voltage

CCS1 / NACS: 200–1000 VDC; constant power 300–1000 VDC

Peak efficiency

96%

Operating temperature

−25 to +65°C; derating at 50°C

Humidity

5–95% RH, non-condensing

Protection

NEMA 3R / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / 4G

Language

English

Backend

OCPP 1.6J; OCPP 2.0.1 can be upgraded later

Payment

Credit card / QR code / RFID

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Connectors

CCS1 / NACS

Certification claims

cTÜVus / FCC / CTEP & NTEP / Energy Star / OCA

Input current (labelled AC power rating)

313 A

Current (table)

CCS1 / NACS: 300 A; 350 A boost

Current (feature text)

350 A continuous claimed

Noise

≤80 dB

Dimensions

Footprint W800×D750×H2000 mm; maximum W918×D750×H2000 mm

Weight

≤495 kg / 1091 lb

RFID

ISO/IEC 14443 Type A

Software update

Local / remote

Continuous-current feature text conflicts with the boost-current table; confirm duty cycle.

DS-203 / Distributed systems

Distributed charging system — 480 V

360 / 480 kW

CCS1 · NACS · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Charging type

Level 3

Protection

IP55 / NEMA 3R / IK10

Altitude

≤2000 m / 6562 ft

Certificate claim

cTÜVus

Software update

Local / remote

Configuration

Maximum 3 charging terminals; 6 connectors per system (feature text)

Warranty claim

24 months

Input

632 A / 515 kW; 480 VAC ±10%; 50/60 Hz; L1+L2+L3+N+PE

Power

480 kW; modules configurable 360–480 kW (feature text)

Output voltage

CCS1 / NACS: 200–1000 VDC; constant power 300–1000 VDC

Electrical protection class

Class I

THDi

≤5%

Efficiency

96%

Tower dimensions (W×D×H)

1400 × 1000 × 2100 mm

Tower weight

≤870 kg / 1918 lb

Tower noise

≤80 dB

Dispenser dimensions

Footprint W750×D370×H2100 mm; maximum W750×D450×H2100 mm

Dispenser weight

≤220 kg / 485 lb

Dispenser noise

≤70 dB

Cable length

5 m / 16.4 ft

Cable current

CCS1: boost 350 A air / 500 A liquid; NACS: boost 350 A

Authentication

RFID / app; NFC / credit card optional

Display

15-inch touch LCD

Protocol

OCPP 1.6J; OCPP 2.0.1 can be upgraded later

RFID

ISO/IEC 14443 Type A

Regional configuration; output shared across dispensers.

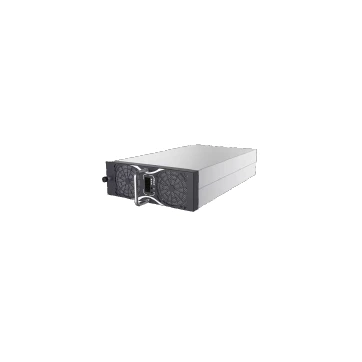

PM-201 / Power modules

20 kW DC power module

20 kW

Component · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Dimensions (W×D×H)

238 × 411 × 86 mm

Weight

10 kg

Cooling

Forced air

Communication

CAN bus

Input voltage

260–480 VAC

Supply

Three phase + PE

Input current

40 A

Frequency

45–65 Hz

Power factor

0.99

THDi

<5%

Output power

20 kW

Output voltage

200–1000 VDC; supports output ≤200 V

Constant-power range

300–1000 VDC

Maximum current

67 A

Peak efficiency

96%

Altitude

<2000 m

Working temperature

−30 to +65°C; derating above 50°C

Humidity

5–95%

Certification claim

CE

Component for compatible DC chargers; not a standalone vehicle charger.

PM-202 / Power modules

40 kW DC power module

40 kW

Component · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Dimensions (W×D×H)

360 × 459 × 85 mm

Weight

20 kg

Cooling

Forced air

Communication

CAN bus

Input voltage

260–525 VAC; supports 200 V ±15% three phase

Supply

Three phase + PE

Input current

Not specified in table

Frequency

45–65 Hz

Power factor

0.99

THDi

<5%

Output power

40 kW

Output voltage

50–1000 VDC

Constant-power range

300–1000 VDC

Maximum current

133 A

Peak efficiency

97%

Altitude

<2000 m

Working temperature

−40 to +75°C; derating above 55°C

Humidity

5–95%

Topology

Three-level LLC

Certification logos

TÜV / CE / KC / ETL shown

Component for compatible DC chargers; not a standalone vehicle charger.

DS-301 / Distributed systems

Flexible distributed charging system

3200 / 4000 / 5000 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

Input overvoltage / overcurrent, leakage, output short circuit, overtemperature, reverse battery connection, emergency stop; tilt and water-ingress protection where stated

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Power variants

3200 kW, 4000 kW, 5000 kW

Module platform

62.5 kW

Efficiency

≥96.5% weighted

Protection

IP54

Power cabinet dimensions (W×D×H)

2100 × 1150 × 2000 mm

DC output channels

24–48 (overview table)

Current per output

Air: 300/400 A; liquid: 600/800 A

Air-cooled terminal dimensions

350 × 350 × 1200 mm

Liquid-cooled terminal dimensions

500 × 450 × 1700 mm

Control power cable

RVV 2 × 4 mm²

Communication cable

CAT6A shielded network cable

Feeder cable types

Copper: YJV22-0.6/1 kV; aluminium: YJLHV22-0.6/1 kV. Cross-sections in installation examples are mm².

Terminal feeder examples

250 A single: Cu 2×120+1×70 / Al 2×185+1×95; 250 A dual or 600 A single: Cu 4×120+1×70 / Al 4×185+1×95; 600 A dual: 2 runs of corresponding single-terminal cable. 300 A: Cu 4×120+1×70 / Al 4×185+1×95; 400/800 A: Cu 4×185+1×95 / Al 4×300+1×150 (2 runs for 5 MW configuration).

Domestic GB/T specification; export configuration and Nepal compatibility require confirmation. System power is shared; short-term current is not continuous current. Installation recommendations require site-specific electrical design.

DS-302 / Distributed systems

Flexible distributed charging system

1600 / 2000 / 2500 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

Input overvoltage / overcurrent, leakage, output short circuit, overtemperature, reverse battery connection, emergency stop; tilt and water-ingress protection where stated

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Power variants

1600 kW, 2000 kW, 2500 kW

Module platform

62.5 kW

Efficiency

>96.5% peak

Protection

IP54

Power cabinet dimensions (W×D×H)

2100 × 1150 × 2000 mm

DC output channels

Not specified in main table

Current per output

Air: 300/400 A; liquid: 600/800 A

Air-cooled terminal dimensions

350 × 180 × 1300 mm

Liquid-cooled terminal dimensions

500 × 450 × 1700 mm

Control power cable

RVV 2 × 4 mm²

Communication cable

CAT6A shielded network cable

Feeder cable types

Copper: YJV22-0.6/1 kV; aluminium: YJLHV22-0.6/1 kV. Cross-sections in installation examples are mm².

Terminal feeder examples

250 A single: Cu 2×120+1×70 / Al 2×185+1×95; 250 A dual or 600 A single: Cu 4×120+1×70 / Al 4×185+1×95; 600 A dual: 2 runs of corresponding single-terminal cable. 300 A: Cu 4×120+1×70 / Al 4×185+1×95; 400/800 A: Cu 4×185+1×95 / Al 4×300+1×150 (2 runs for 5 MW configuration).

Domestic GB/T specification; export configuration and Nepal compatibility require confirmation. System power is shared; short-term current is not continuous current. Installation recommendations require site-specific electrical design.

DS-303 / Distributed systems

Flexible distributed charging system

960 / 1200 / 1440 / 1600 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

Input overvoltage / overcurrent, leakage, output short circuit, overtemperature, reverse battery connection, emergency stop; tilt and water-ingress protection where stated

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Power variants

960 kW, 1200 kW, 1440 kW, 1600 kW

Module platform

40 kW

Efficiency

>96.5% peak

Protection

IP54

Power cabinet dimensions (W×D×H)

2100 × 900 × 2100 mm

DC output channels

2–24

Current per output

Air: 250 A (400 A short-term); liquid: 600 A (800/1000 A short-term)

Air-cooled terminal dimensions

350 × 180 × 1300 mm

Liquid-cooled terminal dimensions

500 × 450 × 1700 mm

Control power cable

RVV 2 × 4 mm²

Communication cable

CAT6A shielded network cable

Feeder cable types

Copper: YJV22-0.6/1 kV; aluminium: YJLHV22-0.6/1 kV. Cross-sections in installation examples are mm².

Terminal feeder examples

250 A single: Cu 2×120+1×70 / Al 2×185+1×95; 250 A dual or 600 A single: Cu 4×120+1×70 / Al 4×185+1×95; 600 A dual: 2 runs of corresponding single-terminal cable. 300 A: Cu 4×120+1×70 / Al 4×185+1×95; 400/800 A: Cu 4×185+1×95 / Al 4×300+1×150 (2 runs for 5 MW configuration).

Parallel cabinet examples

2 cabinets: 1920 kW / 36 cars / 6–8 truck bays / 2000 kVA transformer; 2400 kW / 44 cars / 8–10 truck bays / 2500 kVA transformer.

Domestic GB/T specification; export configuration and Nepal compatibility require confirmation. System power is shared; short-term current is not continuous current. Installation recommendations require site-specific electrical design.

DS-304 / Distributed systems

Flexible distributed charging system

360 / 400 / 480 / 600 / 720 / 800 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C; derating above 50°C

Protection functions

Input overvoltage / overcurrent, leakage, output short circuit, overtemperature, reverse battery connection, emergency stop; tilt and water-ingress protection where stated

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Power variants

360 kW, 400 kW, 480 kW, 600 kW, 720 kW, 800 kW

Module platform

40 kW

Efficiency

>96.5% peak

Protection

IP54

Power cabinet dimensions (W×D×H)

1150 × 900 × 2100 mm

DC output channels

12

Current per output

Air: 250 A (400 A short-term); liquid: 600 A (800 A short-term)

Air-cooled terminal dimensions

350 × 180 × 1300 mm

Liquid-cooled terminal dimensions

500 × 450 × 1700 mm

Control power cable

RVV 2 × 4 mm²

Communication cable

CAT6A shielded network cable

Feeder cable types

Copper: YJV22-0.6/1 kV; aluminium: YJLHV22-0.6/1 kV. Cross-sections in installation examples are mm².

Terminal feeder examples

250 A single: Cu 2×120+1×70 / Al 2×185+1×95; 250 A dual or 600 A single: Cu 4×120+1×70 / Al 4×185+1×95; 600 A dual: 2 runs of corresponding single-terminal cable. 300 A: Cu 4×120+1×70 / Al 4×185+1×95; 400/800 A: Cu 4×185+1×95 / Al 4×300+1×150 (2 runs for 5 MW configuration).

Additional feeder example

640 kW: Cu 4×(4×150+1×70); Al 4×(4×240+1×120); 2×630 A breakers (appears in wiring table only).

Domestic GB/T specification; export configuration and Nepal compatibility require confirmation. System power is shared; short-term current is not continuous current. Installation recommendations require site-specific electrical design.

DS-305 / Distributed systems

Liquid-cooled distributed system

480 / 600 / 720 / 960 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

Input overvoltage / overcurrent, leakage, output short circuit, overtemperature, reverse battery connection, emergency stop; tilt and water-ingress protection where stated

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Power variants

480 kW, 600 kW, 720 kW, 960 kW

Module platform

60 kW

Efficiency

>96.5% peak

Protection

IP55

Power cabinet dimensions (W×D×H)

1800 × 900 × 2200 mm

DC output channels

16

Current per output

Air: 250 A (400 A short-term); liquid: 600 A (800 A short-term)

Air-cooled terminal dimensions

350 × 180 × 1300 mm

Liquid-cooled terminal dimensions

500 × 450 × 1700 mm

Control power cable

RVV 2 × 4 mm²

Communication cable

CAT6A shielded network cable

Feeder cable types

Copper: YJV22-0.6/1 kV; aluminium: YJLHV22-0.6/1 kV. Cross-sections in installation examples are mm².

Terminal feeder examples

250 A single: Cu 2×120+1×70 / Al 2×185+1×95; 250 A dual or 600 A single: Cu 4×120+1×70 / Al 4×185+1×95; 600 A dual: 2 runs of corresponding single-terminal cable. 300 A: Cu 4×120+1×70 / Al 4×185+1×95; 400/800 A: Cu 4×185+1×95 / Al 4×300+1×150 (2 runs for 5 MW configuration).

Domestic GB/T specification; export configuration and Nepal compatibility require confirmation. System power is shared; short-term current is not continuous current. Installation recommendations require site-specific electrical design.

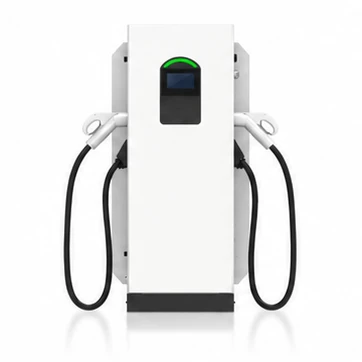

DC-301 / Integrated DC

Heavy-duty integrated DC charger

240 / 300 / 360 / 400 / 480 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

Input overvoltage / overcurrent, leakage, output short circuit, overtemperature, reverse battery connection, emergency stop; tilt and water-ingress protection where stated

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Output channels

2

Efficiency

≥96.4% peak

Protection

IP54

Dimensions (W×D×H)

600 × 550 × 1600 mm

Safety

Input/output overvoltage, short circuit, overcurrent, overtemperature, lightning protection

Domestic GB/T variant; feeder examples require site-specific design.

300 kW appears in the configuration heading only; a separate model specification is not supplied.

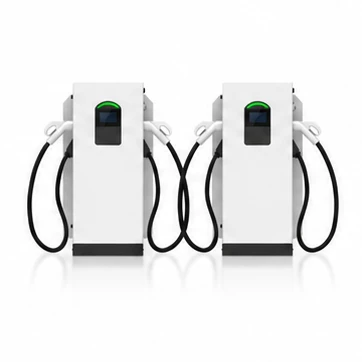

DC-302 / Integrated DC

Four-output paired DC system

160 / 200 / 240 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

AC/DC under/overvoltage, overload, short circuit, leakage, overtemperature, reverse battery, emergency stop, insulation monitoring, cabinet door and contactor adhesion protection

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Output channels

4

Current

250 A rated; 400 A short-term (10 min feature claim)

Efficiency

≥96.5%

Protection

IP54

Dimensions per cabinet (W×D×H)

600 × 350 × 1450 mm

Pairing

2 cabinets at 80 / 100 / 120 kW each

Copper feeder per cabinet

YJV22-0.6/1 kV: 4×95+1×50 mm²; 2 feeders total

Aluminium feeder per cabinet

YJLHV22-0.6/1 kV: 4×150+1×70 mm²; 2 feeders total

Breakers

1×250 A per cabinet

Parallel communication

RVVPS 2×1 mm², shield grounded at both ends

Start modes

QR / VIN / card

DC-303 / Integrated DC

Compact integrated DC charger

80 / 120 / 160 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−20 to +65°C

Protection functions

AC/DC under/overvoltage, overload, short circuit, leakage, overtemperature, reverse battery, emergency stop, insulation monitoring, cabinet door and contactor adhesion protection

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Output channels

Single / dual

Module platform

40 kW

Efficiency

≥96% peak

Protection

IP54

Dimensions (W×D×H)

750 × 450 × 1700 mm

120 kW appears in the configuration heading only; the main model table lists 80 and 160 kW.

DC-304 / Integrated DC

Slim destination DC charger

60 / 80 / 120 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input

380 VAC ±15%

Frequency

45–65 Hz

Power factor

≥0.99

Output voltage

200–1000 VDC

Humidity

5–95%, non-condensing

Altitude

≤2000 m; derating above 2000 m

Operating temperature

−30 to +65°C

Protection functions

AC/DC under/overvoltage, overload, short circuit, leakage, overtemperature, reverse battery, emergency stop, insulation monitoring, cabinet door and contactor adhesion protection

Regional standards

GB/T 18487 / 27930 / 20234 / 34657 / 34658; NB/T 33001 / 33002 / 33008; Q/GDW 1233 / 1235 / 1591; GB 39752-2024 / GB 44263-2024; JJG 1148 / 1149 (catalogue reference table)

Module platform

60 kW

Efficiency

≥96.5%

Protection

IP54

Dimensions (W×D×H)

600 × 350 × 1450 mm

Start modes

QR / VIN / card

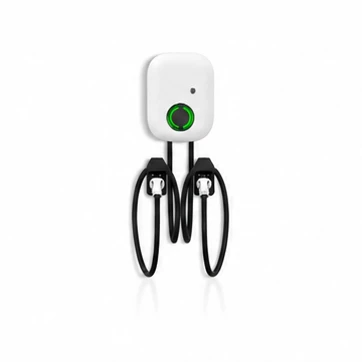

AC-301 / AC charging

Single or dual AC charging post

7 / 14 kW

GB/T · Domestic GB/T

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input / output voltage

220 VAC ±20%

Frequency

45–65 Hz

Output channels

Single / dual

Maximum current per output

32 A

Power

7 kW single; 2 × 7 kW dual (heading)

Communication

4G / Wi-Fi / Ethernet

Start mode

QR code

Protection

IP65

Operating temperature

−40 to +55°C

Humidity

5–95%, non-condensing

Altitude

≤4000 m

Installation

Wall / pedestal

Wall dimensions (W×D×H)

260 × 109 × 350 mm

Pedestal dimensions (W×D×H)

280 × 220 × 1430 mm

Cable length

4 m or 5 m

Protection functions

Over/undervoltage, leakage, overcurrent, lightning protection

Features

Intelligent power allocation; remote pre-charge / connector wake-up

DC-401 / Integrated DC

Portable destination DC charger — earlier edition

30 / 40 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

50–1000 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

8-inch HD touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1

Payment

RFID / app / credit card (Payter)

Altitude

Not stated on product page

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-C-S / TN-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Maximum current

80 A

Dimensions as printed

W700 × D550 × H200 mm

Installation

Floor / wall / portable

Earlier catalogue configuration; do not substitute current-edition dimensions or current limits.

DC-402 / Integrated DC

Integrated DC charger — earlier edition

60 / 80 kW

CCS2 · CHAdeMO · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS2 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-C-S / TN-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Current

CCS2 200 A; CHAdeMO 125 A

Dimensions (W×D×H)

850 × 450 × 2030 mm

Cable management

Optional

Design claims

ADA compliant; Eichrecht acquired

Earlier edition; configuration-specific ratings differ from the newer overseas catalogue.

DC-403 / Integrated DC

Integrated DC charger — earlier edition

80 / 120 / 160 kW

CCS2 · CHAdeMO · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS2 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-C-S / TN-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Current

CCS2 200 A; CHAdeMO 125 A

Dimensions (W×D×H)

1000 × 700 × 2000 mm

Cable management

Optional

Design claims

ADA compliant; Eichrecht acquired

Earlier edition; configuration-specific ratings differ from the newer overseas catalogue.

DC-404 / Integrated DC

Integrated DC charger — earlier edition

120 / 160 / 240 kW

CCS2 · CHAdeMO · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS2 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-C-S / TN-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Current

CCS2 350 A, boost 500 A; CHAdeMO 125 A

Dimensions (W×D×H)

850 × 750 × 2000 mm

Cable management

Optional

Design claims

ADA compliant; Eichrecht acquired

Earlier edition; configuration-specific ratings differ from the newer overseas catalogue.

DC-405 / Integrated DC

Expandable DC charger — earlier edition

640 kW

CCS2 · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

3P+N+PE / 3P+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

200–1000 VDC

Peak efficiency

96.2%

Operating temperature

−30 to +50°C

Humidity

5–95% RH, non-condensing

Protection

IP54 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1 (2025 Q3 as printed)

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-S / TN-C-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Current

Liquid CCS2 500 A / 700 A boost; natural air CCS2 350 A / 500 A boost

Connectors

2; up to 4 with extra dispenser

Switching step

160 kW

Dimensions (W×D×H)

990 × 990 × 2000 mm

Weight

<850 kg

Certification claims

CE / RED / MID compliant

Power modules

40 kW

DS-401 / Distributed systems

Distributed DC system — earlier edition

360 / 480 kW

CCS2 · CHAdeMO · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

Not specified on product page

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS2 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch HD touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1

Payment

RFID; ISO 14443 A+B part 4 / ISO/IEC 15693 / Mifare 1 / NFC

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Current

CCS2 350 A / 500 A boost; liquid 500 A / 700 A boost; CHAdeMO 125 A

Cabinet dimensions (W×D×H)

1400 × 1000 × 2100 mm

Terminal dimensions (W×D×H)

750 × 400 × 2100 mm

Power modules

20 kW

Certification claim

Eichrecht

DS-402 / Distributed systems

Distributed DC system — earlier edition

960 / 1280 kW

CCS2 · CHAdeMO · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

400 VAC ±10%

Input type

Not specified on product page

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS2 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch HD touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1

Payment

Credit card / QR / RFID / Autocharge

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-S

Standards

IEC 61851 / IEC 62196 / DIN 70121 / ISO 15118

Current

CCS2 350 A / 500 A boost; liquid 500 A / 600 A boost; CHAdeMO 125 A

Cabinet dimensions (W×D×H)

2300 × 1100 × 2100 mm

Terminal dimensions (W×D×H)

750 × 400 × 2100 mm

Power modules

40 kW

Certification claim

Eichrecht

DC-406 / Integrated DC

Integrated DC charger — earlier 480 V edition

60 / 160 kW

CCS1 · NACS · CHAdeMO · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

480 VAC ±10%

Input type

3P+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS1 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

NEMA 3R / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1 (2024 as printed); DIN 70121 / ISO 15118

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-C-S / TN-S

Standards

UL 2202 / UL 2231; FCC / CTEP / NTEP / Energy Star / OCA 1.6 (p24)

Current

CCS1 up to 350 A / 500 A boost; NACS up to 350 A / 400 A boost

Dimensions

W850 × D580 × H1900 mm

Power modules

40 kW

DC-407 / Integrated DC

Integrated DC charger — earlier 480 V edition

160 / 240 kW

CCS1 · CHAdeMO · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

480 VAC ±10%

Input type

3P+N+PE

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS1 200–1000 VDC; CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−25 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / IK10

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1 (2024 as printed); DIN 70121 / ISO 15118

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-C-S / TN-S

Standards

UL 2202 / UL 2231; FCC / CTEP / NTEP / Energy Star / OCA 1.6 (p24)

Current

CCS1 300 A; CHAdeMO 125 A

Dimensions

W800–918 × D750 × H2000 mm

Power modules

40 kW

DS-403 / Distributed systems

Distributed system — earlier 480 V edition

480 kW

CCS1 · CHAdeMO · North American

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Input voltage

480 VAC ±10%

Input type

Not specified on product page

Frequency

50/60 Hz

Power factor

>0.99

THDi

<5%

Output voltage

CCS1 0–1000 VDC (as printed); CHAdeMO 200–500 VDC

Peak efficiency

96% at half load

Operating temperature

−30 to +65°C; derating above 50°C

Humidity

5–95% RH, non-condensing

Protection

IP55 / NEMA 3R

Cable length

5 m exposed from charger

Display

15-inch touchscreen

Communication

Ethernet / GSM / 4G

Language

English

Backend

OCPP 1.6 / OCPP 2.0.1 (2024 as printed); DIN 70121 / ISO 15118

Payment

QR code / RFID / NFC; credit card optional

Altitude

≤2000 m

Protection functions

Under/overvoltage, DC overcurrent, overtemperature, surge protection, emergency stop

Grounding

TT / TN-S

Standards

UL 2202 / UL 2231

Current

CCS1 300 A; liquid CCS1 500 A; CHAdeMO 125 A

Power modules

40 kW

Cabinet dimensions (W×D×H)

1400 × 1000 × 2100 mm

Terminal dimensions (W×D×H)

450 × 750 × 2100 mm

AC-401 / AC charging

22 kW AC charger

22 kW

Connector not specified · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Power

22 kW (product matrix)

Connector

Not specified

Input / output voltage

Not specified

Current

Not specified

Dimensions / weight

Not specified

Environmental ratings

Not specified

Protocol / certification

Not specified

Product matrix entry only; detailed specification sheet not supplied.

PM-401 / Power modules

20 kW power module — earlier edition

20 kW

Component · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Dimensions (W×D×H)

238 × 411 × 86 mm

Input voltage

380 VAC rated; 268–480 VAC

Output voltage

200–1000 VDC

Efficiency

≥96.5%

Working temperature

−30 to +70°C; derating >50°C

Altitude

≤2000 m

Atmospheric pressure

86–106 kPa

Supply

Three phase + PE

Cooling

Air

Communication

CAN

Certification claims

CE / KC

Component only. Input frequency, current, weight and continuous output curve not supplied on this page.

PM-402 / Power modules

30 kW power module — earlier edition

30 kW

Component · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Dimensions (W×D×H)

218 × 458 × 84 mm

Input voltage

380 / 480 VAC rated; 268–525 VAC

Output voltage

50–1000 VDC

Efficiency

≥96%

Working temperature

−40 to +75°C; derating >55°C

Altitude

≤2000 m

Atmospheric pressure

86–106 kPa

Supply

Three phase + PE

Cooling

Air

Communication

CAN

Certification claims

CE / UL / KC / RCM

Component only. Input frequency, current, weight and continuous output curve not supplied on this page.

PM-403 / Power modules

40 kW power module — earlier edition

40 kW

Component · International

Catalogue specifications. Exact configuration, supply, warranty and local suitability require confirmation.

Dimensions (W×D×H)

360 × 459 × 85 mm

Input voltage

380 / 480 VAC rated; 268–525 VAC

Output voltage

50–1000 VDC

Efficiency

≥97%

Working temperature

−40 to +75°C; derating >55°C

Altitude

≤2000 m

Atmospheric pressure

86–106 kPa

Supply

Three phase + PE

Cooling

Air

Communication

CAN

Certification claims

CE / UL

Component only. Input frequency, current, weight and continuous output curve not supplied on this page.
